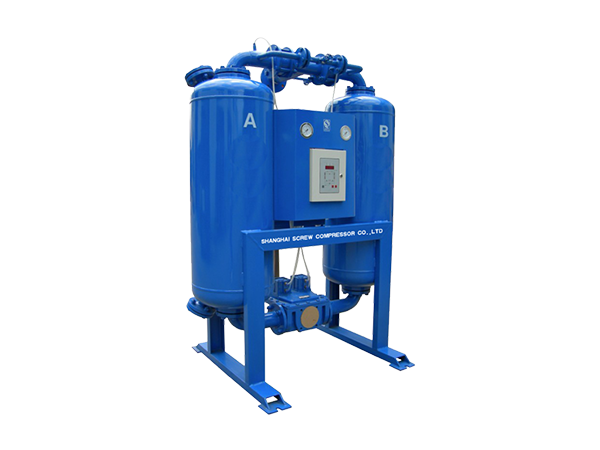

Heatless Absorption

___________

Rating lnlet Air Temperature: ≤38℃    Rating Operating Pressure: 0.8 Mpa
Applicable Range: 0.4-1.0 Mpa      Pressure Drop: < 0.02 Mpa
Pressure Dew Point: -40 ℃ (0.7 Mpa)    Regeneration Mode: Heatless Regeneration
Control Mode: Programmable Time Control
Regeneration Air Consumption: = 12% Rating Air Capacity
Absorbent: Active Alumina    Oil Content of Inlet Air:<0.1 mg/m³
lnstallation Mode: lt should be installed in the concrete ground in rooms，Not need special base and the temperature is no less than 0 ℃.
Power Consumption: 100W



PRODUCT ADVANTAGES



  • 1. Automatic Control System

    Automatic control system and alarm device, ensure the safety and reliability.

  • 2. Air Controlling Dust Filter

    Air controlling dust filter prevents the dust from air controlling components, lower the valves failure rate.

  • 3. Silencer

    New design silencer is made from heat-resistant hyperfine sound-absorbing glass, the noise level ≤72dB(A).. Stainless steel disperser stabilizes, disperses and filters the air flow.

  • 4. High Quality Desiccant

    High quality desiccant activated aluminum or molecular sieve, long service life.

  •

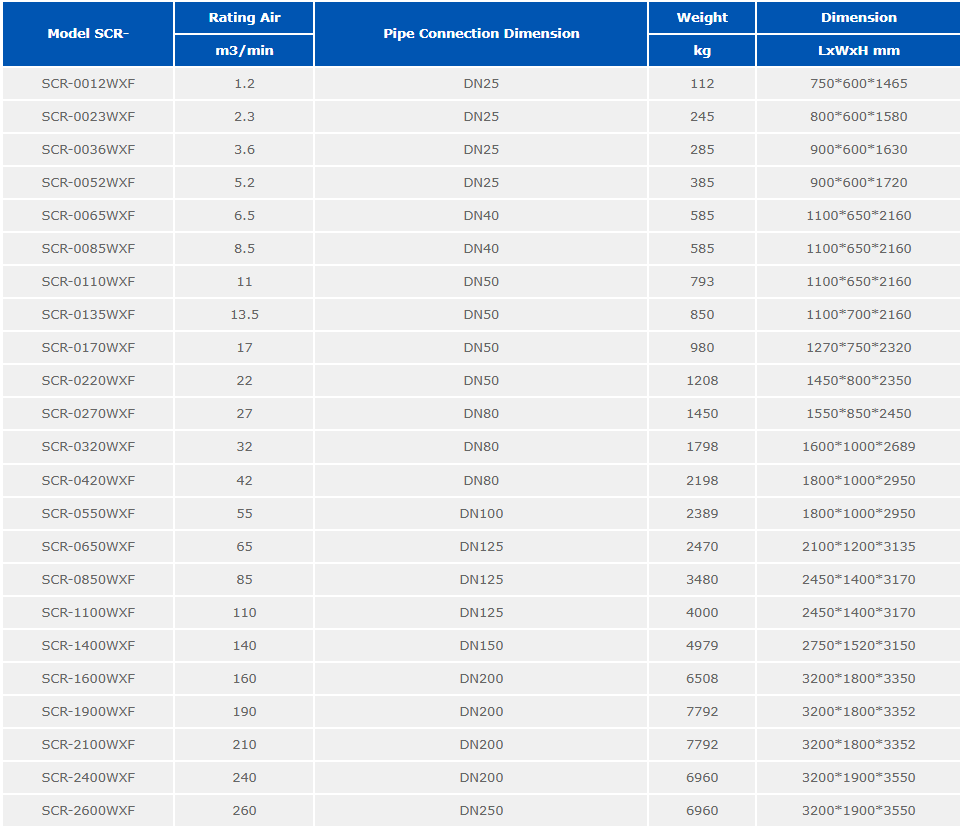

PRODUCT PARAMETER
