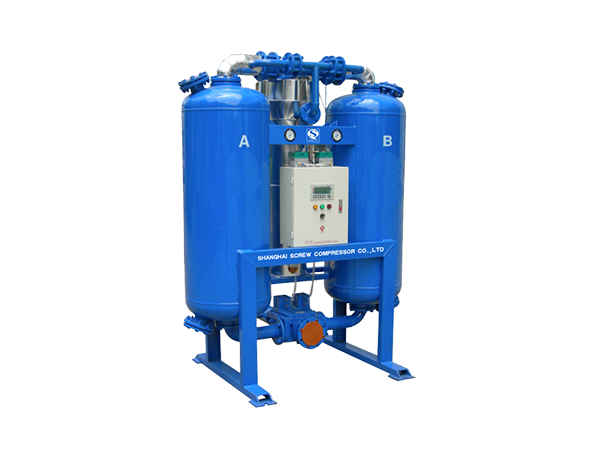

Micro-Heat Absorption Dryer

_____________

Rating Inlet Air Temperature: ≤38℃    Rating Operating Pressure: 0.8 Mpa
Applicable Range: 0.4-1.0 Mpa    Pressure Drop: <0.02 Mpa
Pressure Dew Point: -40 ℃ (0.7 Mpa)   Regeneration Mode: Micro-thermal Regeneration
Control Mode: Programmable Time Control
Regeneration Air Consumption: =7% Rating Air Capacity
Sorbent: Active Alumina   Oil Content of lnlet Air:< 0.1 mg/m3
lnstallation Mode:It should be installed in the concrete ground in rooms Not need special base and the temperature is no less than 0 ℃.



PRODUCT ADVANTAGES



  • 1.Automatic Control System

    Automatic control system and alarm device, ensure the safety and reliability.

  • 2. Air Controlling Dust Flter

    Air controlling dust flter prevents the dust from air controlling components, lower the valves failure rate.

  • 3. Silencer

    New design silencer is made from heat-resistant hyperfine sound-absorbing glass, the noise level ≤72dB(A).. Stainless steel disperser stabilizes, disperses and filters the air flow.

  • 4. Desiccant

    High quality desiccant activated aluminum or molecular sieve, long service life.

  •

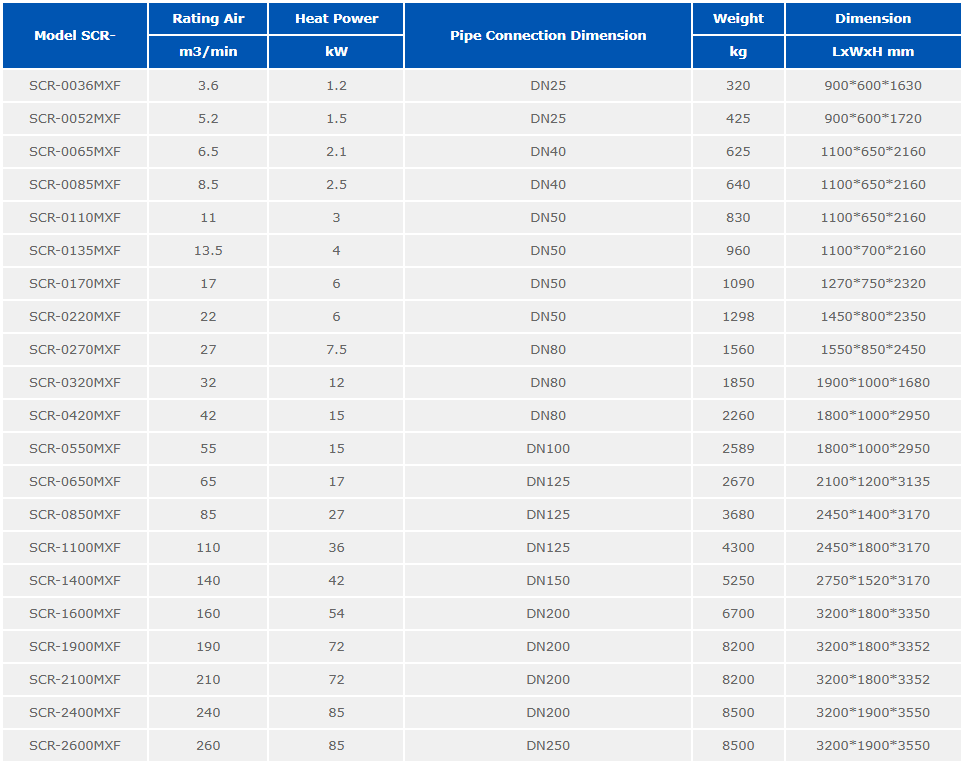

PRODUCT PARAMETER
