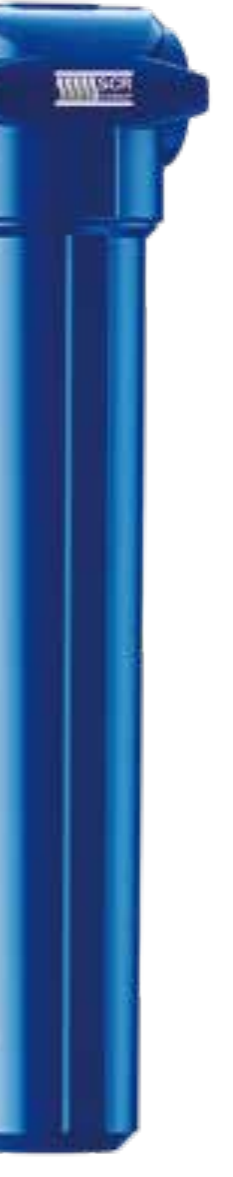

The SCR-E Series high-efficiency filter is rated for 1.0MPa working pressure, designed to remove contaminants from compressed air systems — including solid particles, condensate droplets, and oil vapor — extending the service life of downstream equipment and reducing operating costs.
Selection Table
| Filter Model | Interface | Flow Rate (m³/min) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
|---|---|---|---|---|---|---|---|---|---|
| SCR-E015* | RC3/4 | 1-2 | 332 | 240 | 39 | 80 | 85 | 53 | Ø6.5 |
| SCR-E016* | RC1 | 1-2 | 332 | 240 | 39 | 80 | 85 | 53 | Ø6.5 |
| SCR-E035* | RC1 | 3.5 | 386 | 294 | 39 | 94 | 102 | 53 | Ø8.0 |
| SCR-E060* | RC1-1/2 | 6 | 512 | 420 | 39 | 105 | 112 | 53 | Ø8.5 |
| SCR-E080* | RC1-1/2 | 8 | 512 | 420 | 39 | 105 | 112 | 53 | Ø8.5 |
| SCR-E120* | RC2 | 11.2 | 747 | 655 | 39 | 130 | 140 | 53 | Ø10.5 |
| SCR-E160* | RC2 | 15.5 | 747 | 655 | 39 | 130 | 140 | 53 | Ø10.5 |
| SCR-E180* | RC2-1/2 | 20.4 | 884 | 792 | 39 | 152 | 160 | 53 | Ø13.0 |
| SCR-E240* | RC2-1/2 | 25 | 884 | 792 | 39 | 152 | 160 | 53 | Ø13.0 |
Pressure Correction Coefficient
| Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 |
Notes:
- Indicates the filter element precision grade.
- Maximum working pressure: 1.0MPa, maximum working temperature: 80°C, minimum working temperature: 1.5°C
- For more information about filters, please contact us. The above technical parameters and specifications are subject to change without prior notice, and the actual product shall prevail.
- Full range standard configuration: differential pressure gauge + manual valve + zero air consumption drainer.
