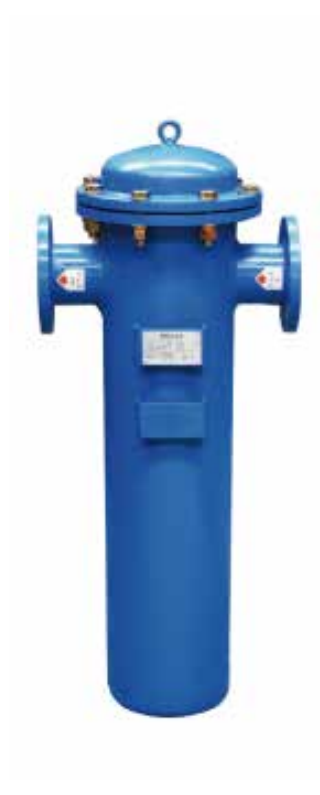

The SCR-Y Series flange-type high-efficiency filter is rated for 1.0MPa working pressure, designed for large compressed air systems requiring high flow rates. Its standard flange connection allows easy installation and supports continuous industrial operation.
Selection Table
| Filter Model | Flow Rate (m³/min) | Interface | H (mm) | W (mm) | Diameter (mm) | Filter Element Qty |
|---|---|---|---|---|---|---|
| SCR-Y020* | 15-20 | DN65 | 950 | 353 | 133 | 1 |
| SCR-Y025* | 25 | DN80 | 1110 | 353 | 133 | 1 |
| SCR-Y030* | 30 | DN80 | 980 | 430 | 245 | 2 |
| SCR-Y040* | 40 | DN100 | 1120 | 465 | 245 | 2 |
| SCR-Y050* | 50 | DN100 | 1166 | 500 | 273 | 3 |
| SCR-Y060* | 60 | DN125 | 1166 | 500 | 273 | 3 |
| SCR-Y080* | 80 | DN125 | 1250 | 565 | 325 | 4 |
| SCR-Y100* | 100 | DN150 | 1268 | 617 | 377 | 5 |
| SCR-Y120* | 120 | DN150 | 1304 | 726 | 426 | 6 |
| SCR-Y140* | 140 | DN200 | 1390 | 780 | 480 | 7 |
| SCR-Y160* | 160 | DN200 | 1420 | 800 | 500 | 8 |
| SCR-Y180* | 180 | DN200 | 1420 | 800 | 500 | 8 |
| SCR-Y200* | 200 | DN200 | 1570 | 800 | 500 | 9 |
| SCR-Y260* | 260 | DN250 | 1645 | 860 | 550 | 12 |
| SCR-Y300* | 320 | DN250 | 1710 | 970 | 650 | 14 |
Pressure Correction Coefficient
| Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 |
Notes:
- Indicates the filter element precision grade.
- Maximum working pressure: 1.0MPa, maximum working temperature: 80°C, minimum working temperature: 1.5°C
- For more information about filters, please contact us. The above technical parameters and specifications are subject to change without prior notice, and the actual product shall prevail.
- Full range standard configuration: differential pressure gauge + manual valve + zero air consumption drainer.
