1. Energy Saving

Depends on multi-level control, realized better operation and energy saving.

Multiple compressors are built into one canopy. According to the compressed air usage amount , take use of a better number of free operation through the multi-stage control, so as to avoid unnecessary operation to realize energy saving.

Multi stage control has the energy saving ability beyond frequency conversion control.

Take use of on/off control with minimum energy consumption. According to the air usage and the actual situation to achieve better operation, Significantly reduce power consumption, better energy saving effect.

• 2. Japan Original Anest Iwata Airend

  Original Made-in-Japan Anest Iwata airend, highest quality standard in the world, Simple structure, easy maintenance. Low noise and fast air supply, Airend does not need oil cooling and lubrication to realize true oil-free.


•

• 3. Airend Structure:

  Simple structure, Orbiting scroll & Fixed scroll realize compression process, no friction.



•

• 4. SCR9000 Touch screen controller

  1.7" touch screen PLC, easy for operation.

  2.Full features protection, including over temp. Protection, over pressure protection, motor overload, phase unbalance etc. more than 13itmes protection.

  3.Support intelligent control, such as running schedule, auto startup after power failure.

  4.Support Modbus RTU, and can realize remote monitoring.



•

• 5. Compressor Layout

  Compressor is combined by multiple airend+motor together, each one realize independent driven and control, more safe operation.

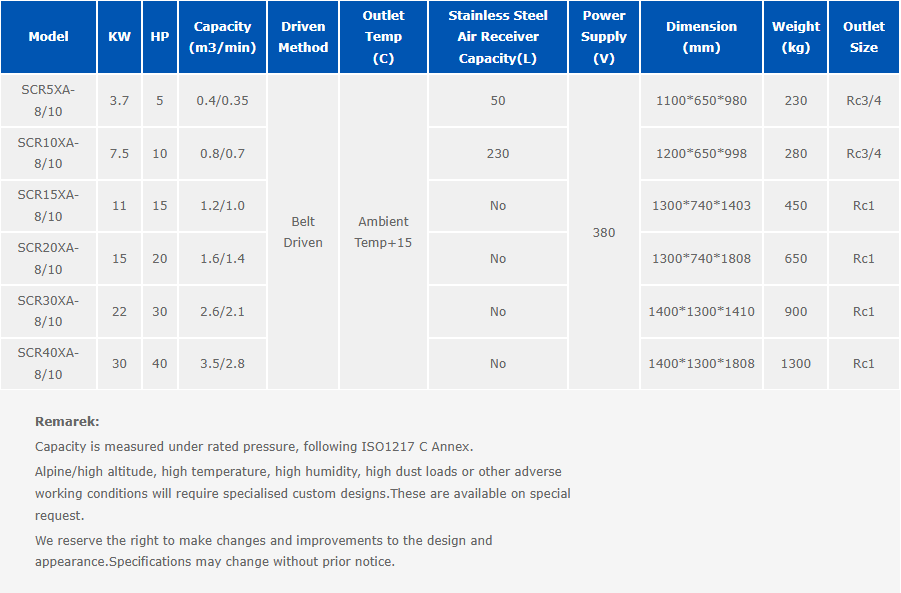

PRODUCT PARAMETER
